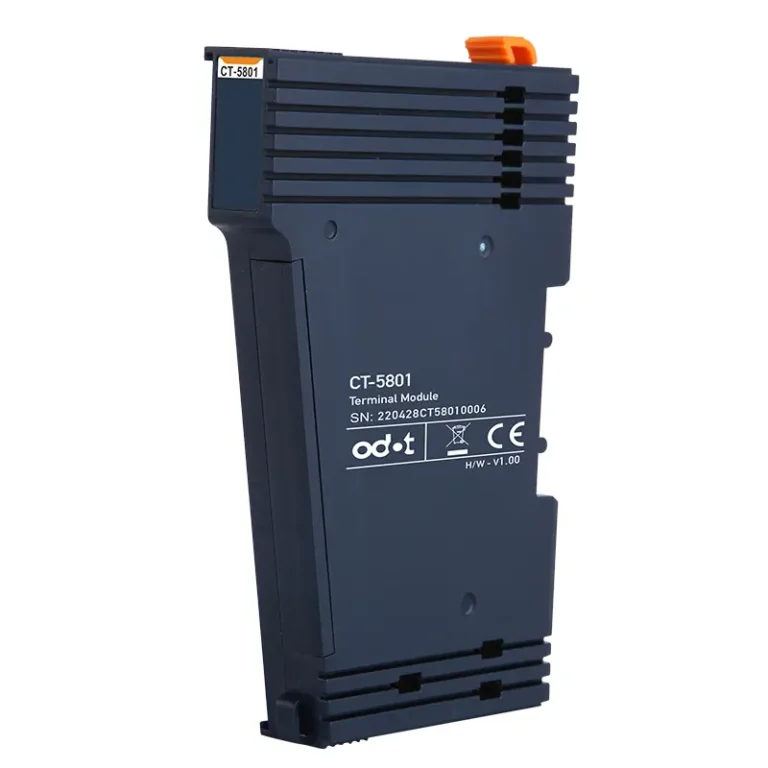

CT-5801: TERMINAL MODULE

Product Feature:

CT-5801: Terminal module Terminal modules are used to stabilize the internal bus communication.

Each C series I/O protocol adapter must be equipped with 1pc of terminal module CT-5801 no matter how many sub-modules are connected.

The dustproof terminal could cover the internal bus and field power supply hardware of the last IO module.

And terminal modules have no process data and configuration parameters.

* Take no module channel and replace CT-5800.

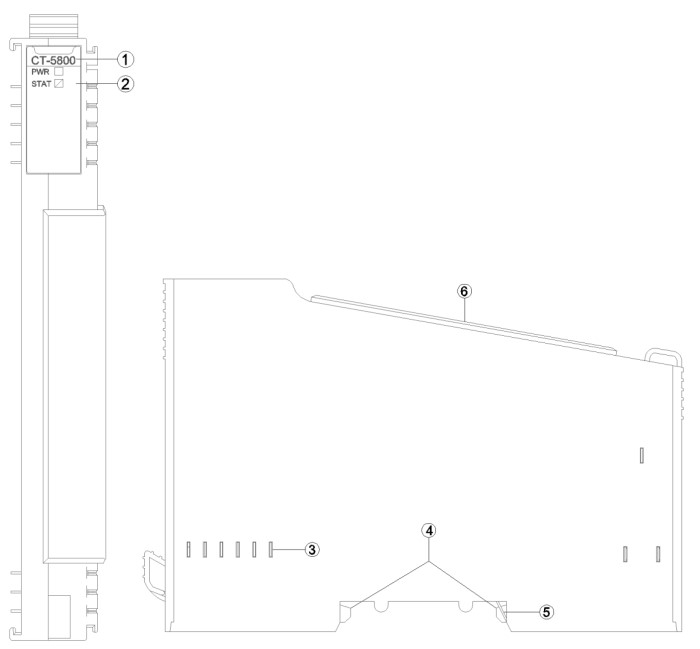

Product Details

  1. Module Type
  2. State Indicator
  3. Internal Bus
  4. Buckle
  5. Grounding Resilient Sheet
  6. Terminal Cover

Technical Parameters

GEneral parameters
Power
Max.20mA@5.0Vdc
Mounting Type
35mmDIN-Rail
Size
115*14*75mm
Weight
65 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% RH(No Condensation)
Protection Class
IP20
