CT-5720: BUS EXTENDED SLAVE MODULE

Product Feature:

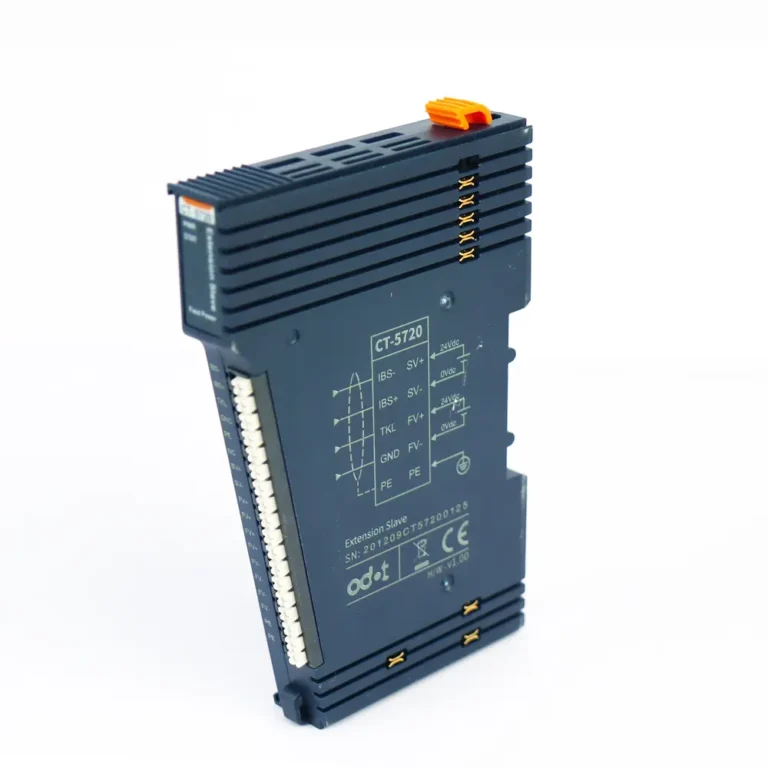

CT-5720 Bus extended slave module

The bus extened slave module is used to extend the bus.The bus extended slave module has no process data and configuration parameters.

Product Details

Technical Parameters

GEneral parameters
Power
Max.20mA@5.0Vdc
Mounting Type
35mmDIN-Rail
Size
115*14*75mm
Weight
65 g
System Power
Nominal: 24Vdc, Range: 9-36Vdc
Protection
Overcurrent Protection, Reverse Protection: YES
Internal BUS Supply Current
Max. 2.5A@5VDC
Isolation
System Power to Field Power Isolation
Field Power Supply
Power Supply: 22~28V( Nominal 24VDC)
Field Power Supply Current
Max. DC 8A
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% RH(No Condensation)
Protection Class
IP20
