CT-5710: BUS EXTENDED MASTER MODULE
Product Feature:

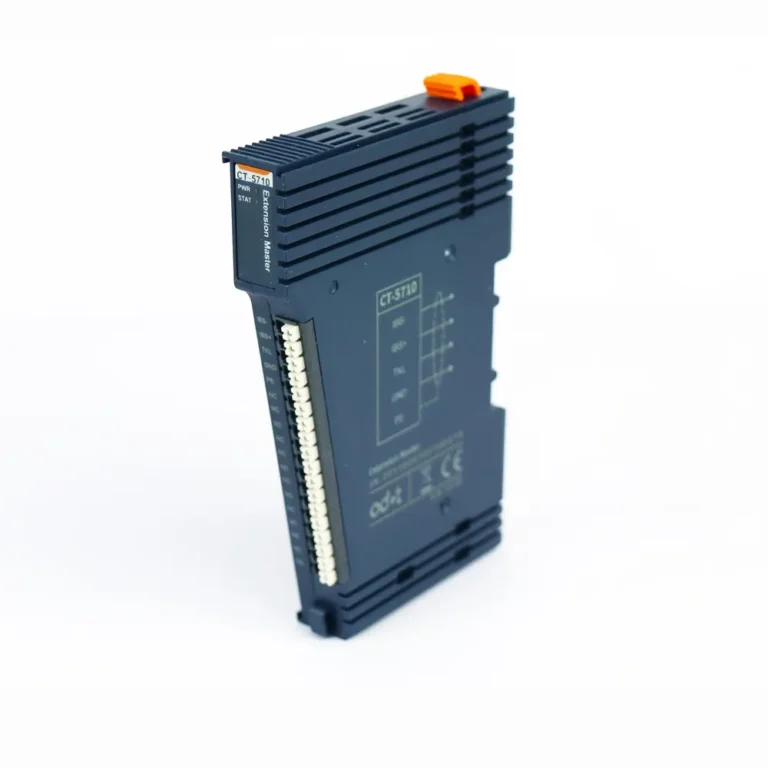

CT-5710 Bus extended master module

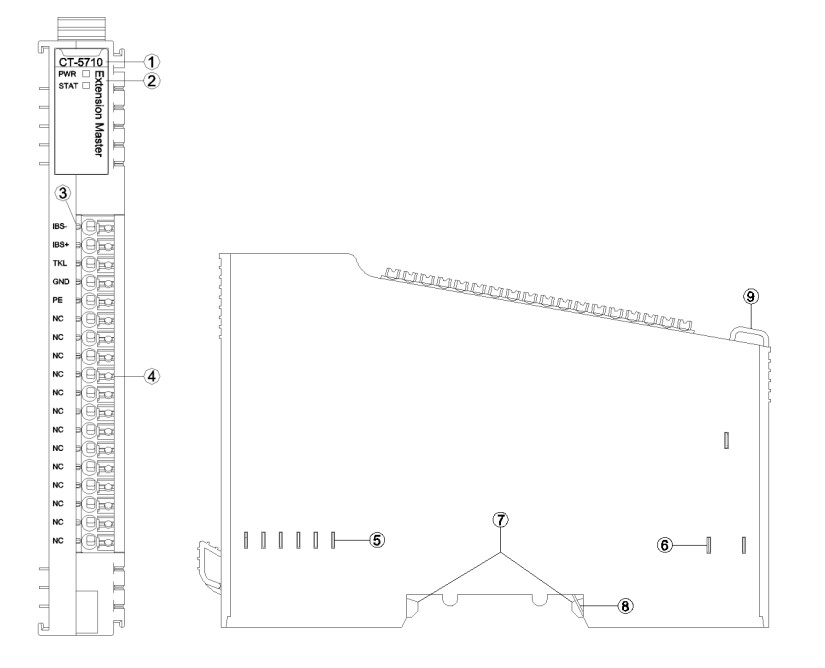

Module Description
The bus extened master module is used to extend the bus.The bus extended master module has no process data and configuration parameters.
Wiring
Bus extended cable requires 5 core shielded cable, IBS+ and IBS- must use twisted pair. PE guarantees a reliable grounding and the total length of the bus extended cable should not exceed 10 meters.
Product Details
Technical Parameters
| GEneral parameters | |||
|---|---|---|---|
|
Power |
Max.20mA@5.0Vdc
|
||
|
Mounting Type
|
35mmDIN-Rail
|
||
|
Size
|
115*14*75mm |
||
|
Weight
|
65 g |
||
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% RH(No Condensation)
|
|
Protection Class |
IP20 |
