CT-5321: MODBUS SERIAL PORT MODULE

Product Feature:

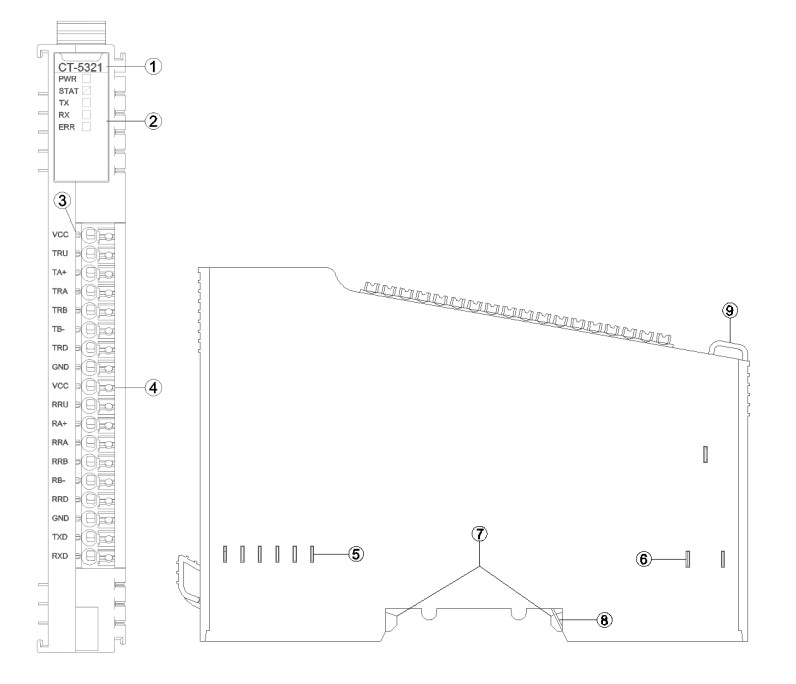

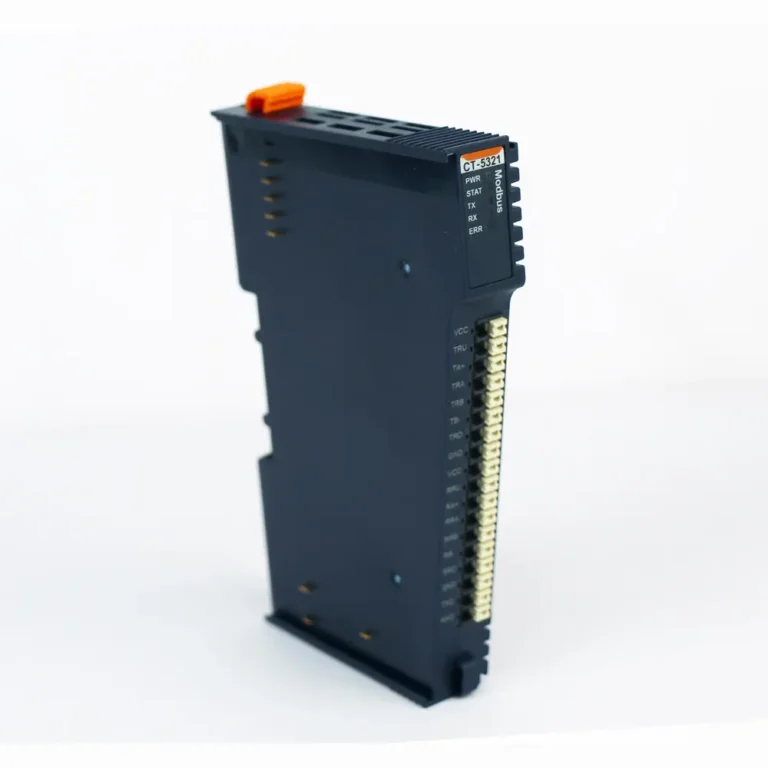

CT-5321 Modbus Serial Port Module

1 Module Description

The Modbus serial port module supports 1 channel RS485/RS232 /RS422(optional), supports Modbus RTU/ASCII protocol, and supports master, slave and free transparent transmission mode.

The serial Module CT-5321 could be applied with the adapter modules, so it could convert Modbus into other protocols such as Modbus TCP, Profinet, EtherCAT, EtherNet/IP, etc. When the module is used, serial port parameters and Modbus instructions should be configured in IO Config software.

Devices with RS485/RS232/RS422 interface, which support modbus-RTU/ASCII, could be applied with CT-5321 to realize interconnection with upper PLC or upper computers. CT-5321 could be applied with devices such as: PLC, DCS, remote IO, VFD, motor start protection device, intelligent high and low voltage electrical apparatus, power measurement device, intelligent field measurement equipment and instruments, etc.

Product Details

Technical Parameters

GEneral parameters
Power
Max.500mA@5.0Vdc
Isolation
I/O to internal bus: opto-couple isolation (3KVrms)
Field Power
Nominal:24Vdc, Range:20-28Vdc
Weight
65 g
Mounting Type
35mmDIN-Rail
Size
115*14*75mm
Weight
65 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% RH(No Condensation)
Protection Class
IP20

Note: M represents the valid parameters of master mode, S represents the valid parameters of slave mode, and F represents the valid parameters of free transparent transmission mode

Serial Port Parameters
M/S/F:Channel Number
1Channel
M/S/F:Interface
RS485/RS232/RS422
M/S:Protocol
Modbus RTU/ASCII
M/S/F:Working Mode
Modbus Master, Slave, Transparent Transmission
M/S/F:Baud Rate
300bps-500Kbps
M/S/F:Data Bit
Bit 7, Bit 8
M/S/F:Parity Checking
None, Odd, Even
M/S/F:Stop Bit
Bit1, Bit2
M/S/F: Character Interval
1.5t-200t
F: Byte Order Conversion
Prohibit, Enable
M/F:Response Timeout
Customized， default： 1000
M/F: Polling Timeout
Customized， default： 100
M: Read Data Processing Mode
Hold the last input value, clear the input value
M: Data Output Mode
Polling, event triggering (data changes)
M: Module Control Enable
Prohibit, Enable
M: Module Control Mode
Level trigger (continuously valid), rising edge trigger (single valid)
M: Power on Event Output
Prohibit, Enable
S:Slave ID
Customized， default： 1
S:Response Time
Customized， default： 50
