CT-5122 2-CHANNEL ENCODER/SSI INPUT
Product Feature:
- the module supports two channels of SSI encoder input.
- each encoder channel supports SSI absolute encoder signal input.
- each encoder channel supports 1 digital input signal with an input voltage of 5Vdc or 24Vdc.
- each encoder channel supports 1 digital output signal with an output voltage of 5Vdc.
- the module internal bus and field input adopt magnetic isolation
- the module carries 16 LED indicators.
- the module supports the maximum clock frequency of 2MHz.
- the encoder reading interval time could be set.
- The data bit length and the start and end bit positions could be set.

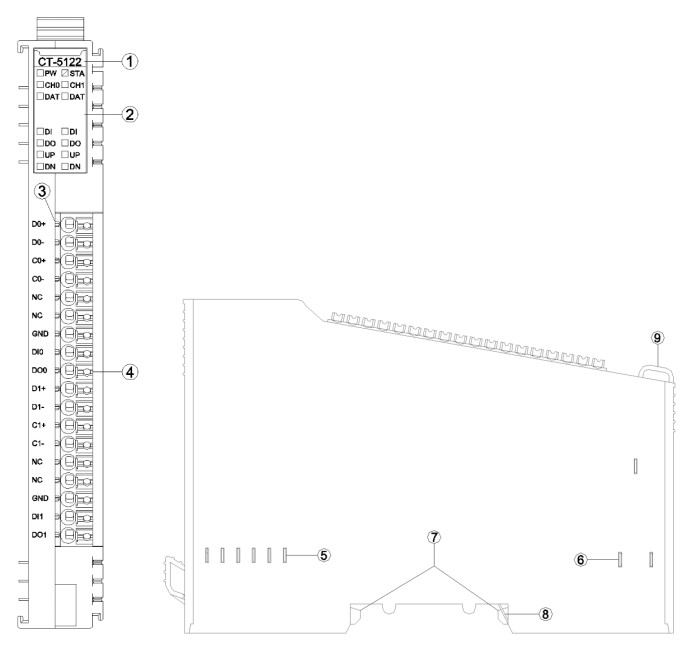

Product Details
Technical Parameters
| GEneral parameters | |||
|---|---|---|---|
|
Power |
Max.60mA@5.0Vdc
|
||
|
Isolation |
I/O to internal bus: magnetic isolation (3KVrms)
|
||
|
Field Power |
Nominal:24Vdc, Range:20-28Vdc
|
||
|
Wiring |
I/O Wiring： Max.1.5mm²(AWG 16)
|
||
|
Mounting Type
|
35mmDIN-Rail
|
||
|
Size |
115*14*75mm
|
||
|
Weight |
65g
|
||
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% RH(No Condensation)
|
|
Protection Class |
IP20 |
| Input parameters | |
|---|---|
|
Channel Number |
2-channel encoder
|
|
LED Indicator
|
16 channel input LED indicator
|
|
Encoder signal type
|
Differential signal, 5V
|
|
Data frame length |
10-40 bit
|
|
Position value length
|
Maximun of 32 bit
|
|
Position value format
|
Supports gray code or binary
|
|
Location value LSB/MSB
|
Settable
|
|
SSI encoder clock frequency
|
≤2MHz
|
|
DI turn-on voltage
|
Min.5Vdc to Max.28Vdc
|
|
DI turn-off voltage
|
Max.2.7Vdc
|
|
DI turn-on current
|
Max.5mA/channel@28V
|
|
DI input impedance
|
>10.0kΩ
|
|
DI input delay Off to ON
|
Max.3ms
|
|
DI input delay ON to OFF
|
Max.2ms
|
|
DO output voltage
|
5V, range ±10%
|
|
DO output current
|
Max.500mA
|
|
DO output sink current
|
Max.5uA
|
