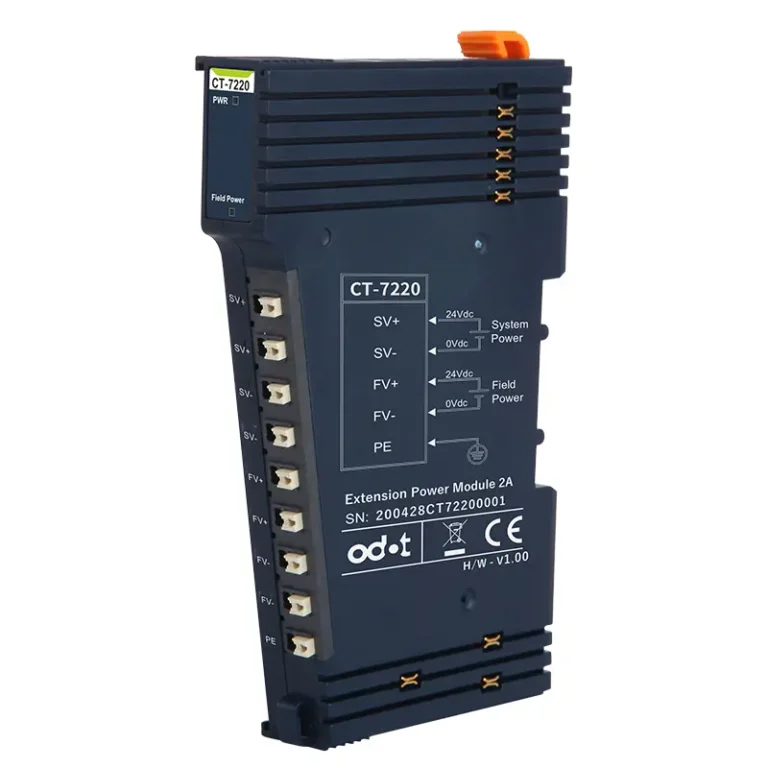

CT-7220: POWER SUPPLY EXTENSION MODULE 5V/2A
Product Feature:
CT-7220 Power Supply Extension Module 5V/2A
- System Power and Field Power Extension
- System Power Output 2A@5VDC
- Field Power Extension 8A Current
- Take no module channel(replace CT-7221)

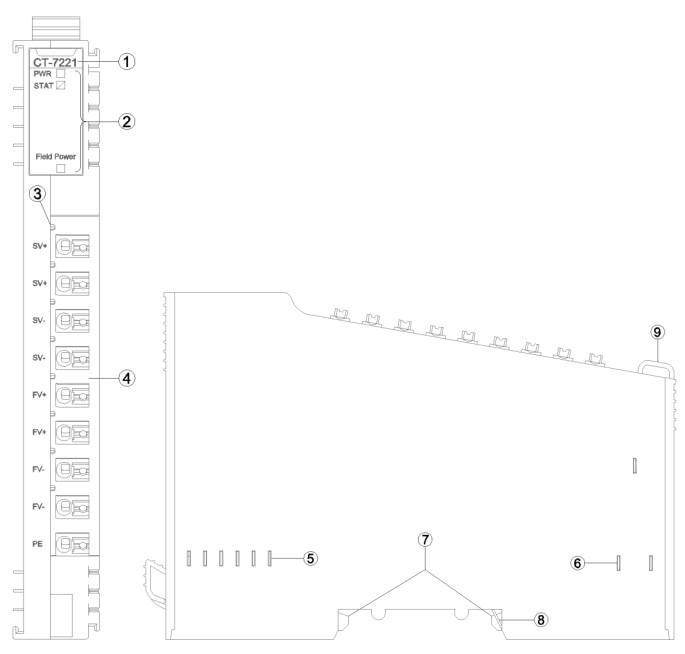

Product Details
- Module Type
- State Indicator
- N/A
- Wiring Terminal and Identifiaction
- Internal Bus
- Field Power
- Buckle
- Grounding Resilient Sheet
- Fixed Wiring Harness
Technical Parameters
| GEneral parameters | |
|---|---|
|
Power |
Nominal24Vdc
|
|
Range
|
9-36Vdc
|
|
Protection |
overcurrent protection, anti-reverse connection protection
|
|
Module Internal Power Consumption
|
20mA@5VDC
|
|
Internal Bus Supply Current
|
Max:2.0A@5VDC
|
|
Isolation
|
System Power to Field Power Isolation
|
|
Field Power
|
Power Supply22~28V（Nominal:24Vdc）
|
|
Protection
|
anti-reverse connection protection
|
|
Field Power Supply Current
|
Max. DC 8A
|
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% RH(No Condensation)
|
|
Protection Class |
IP20 |
| Input parameters | |
|---|---|
|
Channel Number |
2-channel encoder
|
|
LED Indicator
|
16 channel input LED indicator
|
|
Encoder signal voltage range
|
ABZ input standard 5Vdc, range ±10%
|
|
Encoder input impedance |
Internal pull-up or pull-down resistance 4.7K
|
|
Encoder filtering time
|
Could be set, the default value is 0.5 us
|
|
Encoder count frequency
|
<1.5MHz
|
|
Encoder frequency multiplication mode |
x1/x2/x4
|
|
Encoder measurement function
|
Load speed or input signal frequency measurement
|
|
DI turn-on voltage
|
Min.5Vdc to Max.28Vdc
|
|
DI turn-off voltage
|
Max.2.7Vdc
|
|
DI turn-on current
|
Max.5mA/channel@28V
|
|
DI input impedance
|
>10.0kΩ
|
|
DI input delay Off to ON
|
Max.3ms
|
|
DI input delay ON to OFF
|
Max.2ms
|
|
DO output voltage
|
5V, range ±10%
|
|
DO output current
|
Max.500mA
|
|
DO output sink current
|
Max.5uA
|
