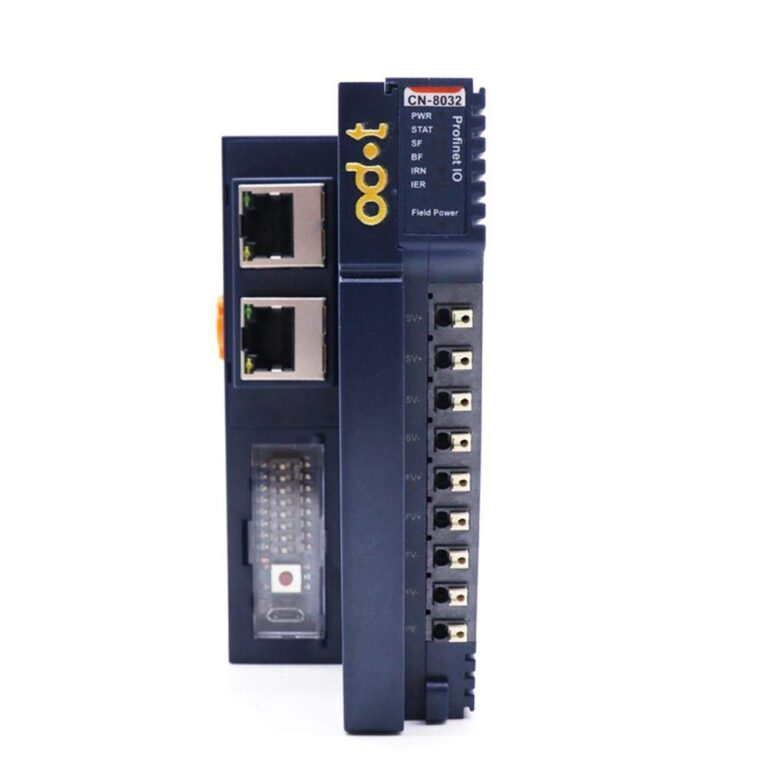

ODOT CN-8032 Profinet Network Adapter
The CN-8032 Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports MRP media redundancy, and it could realize ring network redundancy. And it supports RT/IRT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms and IRT synchronous communication minimum period of 250us.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32.

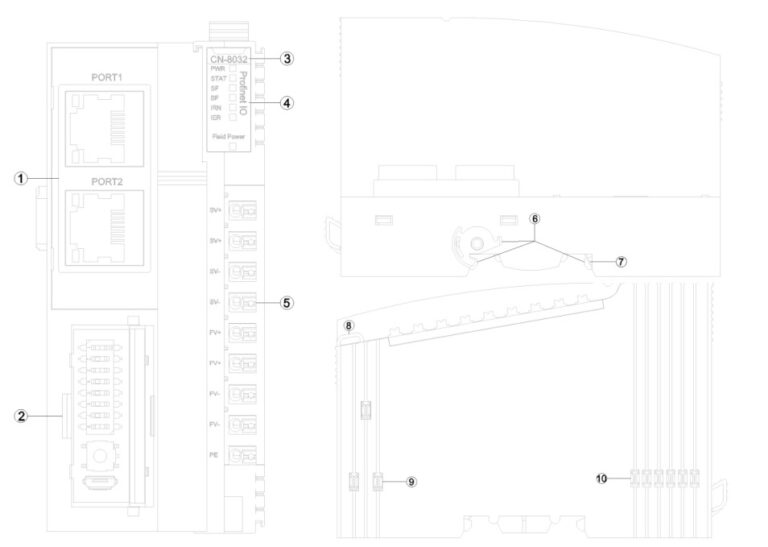

Product Details
Technical Parameters
| Hardware Specification | |||
|---|---|---|---|
|
System Power
|
Nominal: 24Vdc. Range: 9-36Vdc. Reverse Protection: YES.
|
||
|
Power Consumption
|
110mA@24Vdc
|
||
|
Current Output
|
Max:2A@5Vdc
|
||
|
Isolation
|
System Power to Field Power Isolation
|
||
|
Field Power
|
Nominal-24Vdc. Range-22-28Vdc.
|
||
|
Reverse Protection
|
YES
|
||
|
Field Power Contact
|
Max: 8A |
||
|
Expansion Module
|
32 Slots
|
||
|
Wiring
|
Max.1.5mm² (AWG 16)
|
||
|
Mounting Type
|
35mm DIN-Rail
|
||
|
Size
|
115*51.5*75mm
|
||
|
Weight
|
130 g
|
||
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% (No Condensation)
|
|
Protection Class |
IP20 |
| Profinet Parameter | |||
|---|---|---|---|
|
Protocol
|
Profinet IO Device
|
||
|
I/O Data Size
|
Input Max.1440 Bytes, Output Max.1440 Bytes
|
||
|
RT
|
YES，Min.1ms
|
||
|
IRT
|
YES，Min.250us
|
||
|
MRP
|
YES
|
||
|
MRPD
|
NO
|
||
|
Network Interface
|
RJ45x2 |
||
|
Speed
|
10/100Mbps, MDI/MIDX, Full-Duplex
|
||
|
Distance
|
100m
|
||
|
Profinet Device Name
|
DIP switch setting or Profinet monitor modifying
|
||
