ODOT CN-8031：MODBUS TCP NETWORK ADAPTER
Product Feature:

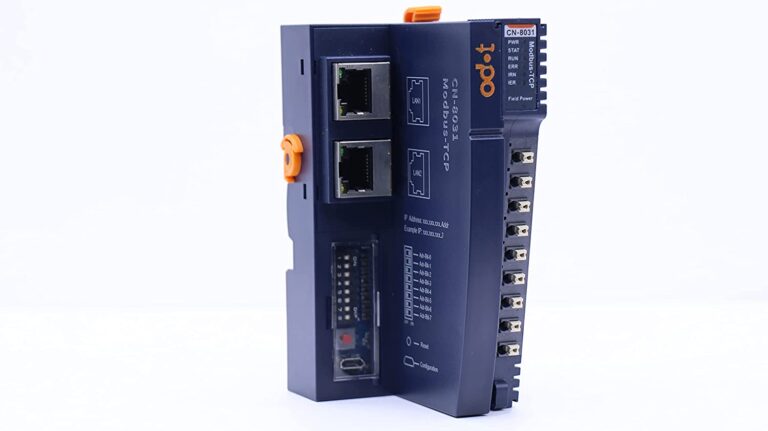

ODOT CN-8031 Modbus TCP Adapter
CN-8031 Modbus TCP Network Adapter supports the standard Modbus TCP Server Communication, and Ethernet supports the cascade function of dual-port switches.This adapter supports access to 5 Modbus TCP clients simultaneously, supports Modbus function code 01/02/03/04/05/06/15/16 /23, supports the Modbus application of watchdog, supports the process data maximum sum of input and output of 8192 bytes, and supports number of the extension IO module of 32. Module carries with the diagnostic function and it could monitor the communication status of IO module in real time.

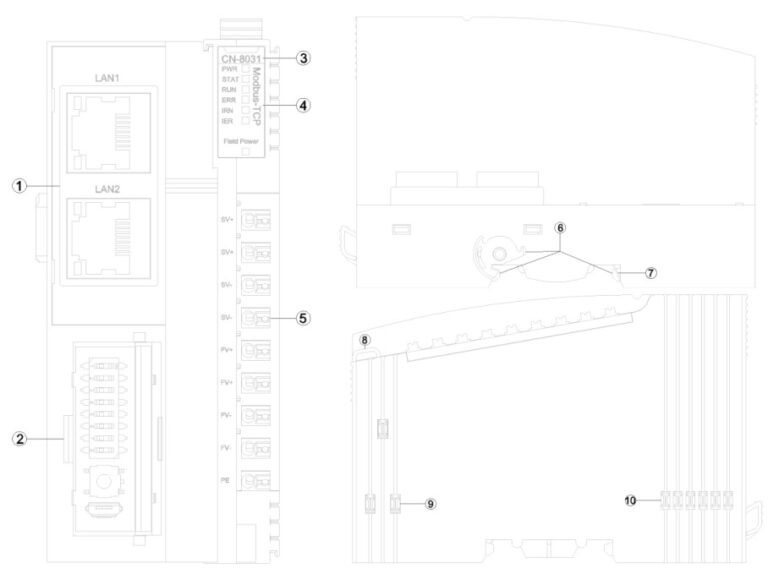

Product Details
Technical Parameters
| Hardware Specification | |||
|---|---|---|---|
|
System Power
|
Nominal: 24Vdc. Range: 9-36Vdc. Reverse Protection: YES.
|
||
|
Power Consumption
|
50mA@24Vdc
|
||
|
Current Output
|
Max. 2.5A@5VDC
|
||
|
Isolation
|
System Power to Field Power Isolation
|
||
|
Field Power
|
Nominal:24Vdc
|
||
|
Range
|
22-28Vdc
|
||
|
Field Power Contact
|
Max. 8A |
||
|
Expansion Module
|
32 slots |
||
|
Wiring
|
Max.1.5mm² (AWG 16)
|
||
|
Mounting Type
|
35mm DIN-Rail
|
||
|
Size
|
115*51.5*75mm
|
||
|
Weight
|
130 g
|
||
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% (No Condensation)
|
|
Protection Class |
IP20 |
| Communication Interface Specification | |||
|---|---|---|---|
|
Protocol
|
Modbus-TCP
|
||
|
Process Data Area
|
Sum of input and output:8192 Byte
|
||
|
Diagnostic Function
|
Supported
|
||
|
Modbus Data Storage Area
|
|
||
|
0xxxx area (Coil)
|
8192 Bit
|
||
|
1xxxx area (Discrete input)
|
8192 Bit
|
||
|
3xxxx area (Input register)
|
2048 Word |
||
|
4xxxx area (Holding register)
|
2048 Word
|
||
|
3xxxx area (System diagnostics – state input)
|
105 Word
|
||
|
4xxxx area (System diagnostics – control output)
|
1 Word Number of TCP:5 Clients
|
||
|
TCP Keepalive
|
YES
|
||
|
Modbus Watchdog
|
YES (Default:Enable, 30 Seconds)
|
||
|
Function Code
|
01/02/03/04/05/06/15/16/23
|
||
|
Network Interface
|
RJ45x2
|
||
|
Speed
|
10/100Mbps, MDI/MIDX, Full-Duplex
|
||
|
Distance
|
100m
|
||
|
IP Address
|
DIP switch set or IO-Config software set
|
||
