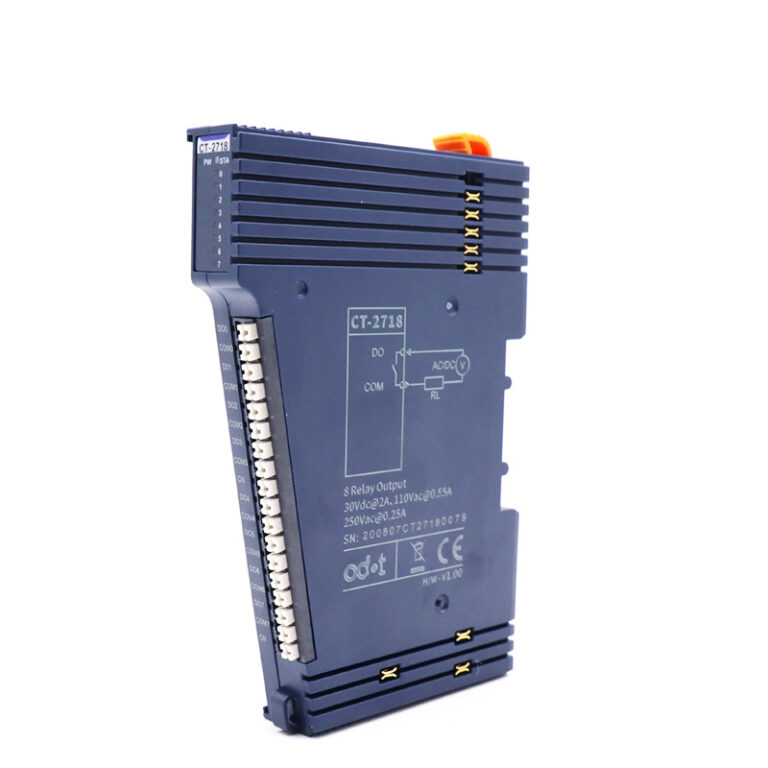

CT-2718: 8 CHANNEL RELAY OUTPUT 2A/30VDC/60W
Product Feature:
IO Config V1.0.0.6(Fully with .NET4.0.rar|CT-2718.pdf
CT-2718: 8 channel relay output 2A/30VDC/60W
Module features
- 8-channel relay normally on output
- 8 LED channel indicators
- Low on resistance (≤100mΩ)
- 250VAC/220VDC the max. switch voltage is 250VAC/220VDC

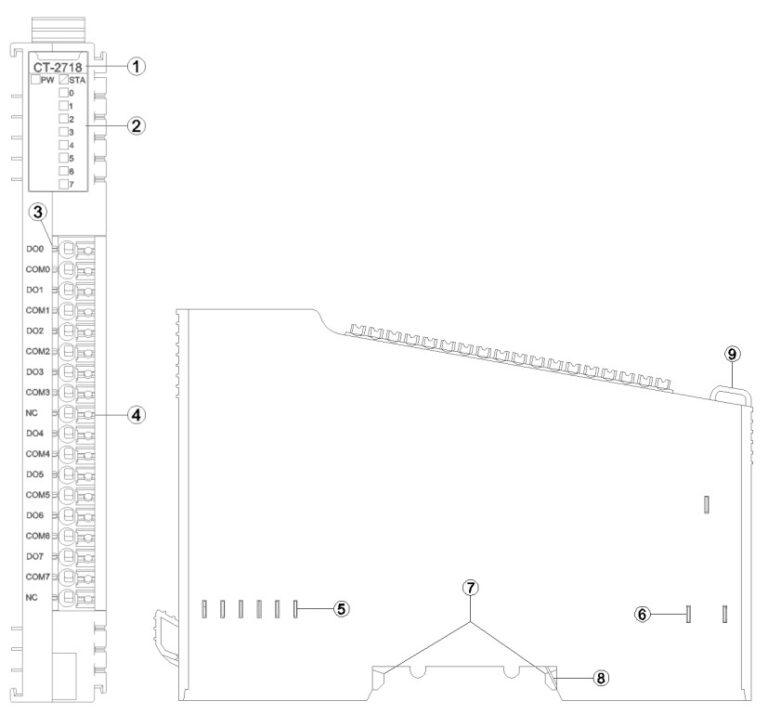

Product Details
1. Module Type
2. State indicator
3. N/A
4. Wiring Terminal and identification
5. Internal Bus
7. Buckle
9. Fixed Wiring Harness
Product Characteristic
IO Config V1.0.0.6(Fully with .NET4.0.rar|CT-2718.pdf
CT-2718: 8 channel relay output 2A/30VDC/60W
Module features
- 8-channel relay normally on output
- 8 LED channel indicators
- Low on resistance (≤100mΩ)
- 250VAC/220VDC the max. switch voltage is 250VAC/220VDC
Technical Parameters
| GEneral parameters | |||
|---|---|---|---|
|
Power Consumption |
Max.280mA@5.0Vdc
|
||
|
Isolation
|
I/O to internal bus: coil isolation(1600VAC
|
||
|
Field Power
|
Not used
|
||
|
Wiring
|
I/O wiring: Max.1.5mm2(AWG 16) |
||
|
Mounting Type
|
35mm DIN-Rail
|
||
|
Size
|
115*14*75mm |
||
|
Weight
|
65 g |
||
| Environment Specification | |
|---|---|
|
Operational Temperature |
-40~85℃
|
|
Operational Humidity
|
5%-95% (No Condensation)
|
|
Protection Class |
IP20 |
| Output parameters | |||
|---|---|---|---|
|
Channel Number |
8 channel relay normally on output |
||
|
LED indicator
|
8 channels output LED indicator
|
||
|
Max. Switchig Current
|
2A
|
||
|
Max. Switching Voltage |
250VAC/220VDC
|
||
|
Contact Resistance |
<100mΩ
|
||
|
Output delay Off to On |
Max. 3ms |
||
|
Output delay On to Off
|
Max. 3ms |
||
|
Mechanical Endurance
|
1×108
|
||
|
Electricity Endurance |
1×105
|
||
|
Vibration
|
10Hz~55Hz 3.3mm Double vibration amplitude
|
||
|
Impact |
Stability: 735m/s2 |
||
|
Strength |
980m/s2 |
||
