CT-222H: 32 CHANNELS DIGITAL OUTPUT, SOURCE, 24VDC/0.5A,34PIN MALE CONNECTOR

Product Feature:

CT-222H: 32 channels digital output, source, 24Vdc/0.5A,34Pin male connector

  • the module supports 32 channels digital output; the output voltage is 24VDC and the output high level is valid.
  • module can drive field equipment. (relay, solenoid valve, etc.)
  • the internal bus of the module and field output are using opto-coupler.
  • the module carries 32 digital output channel LED indicator light.
  • the module has the functions of thermal shutdown and overcurrent protection.
  • the module supports short circuit protection and overload protection.

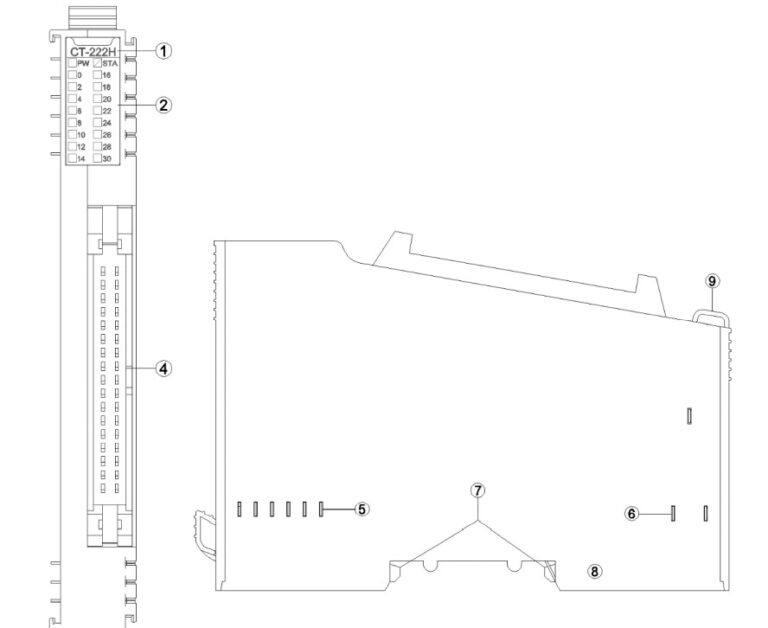

Product Details

Technical Parameters

GEneral parameters
Power Consumption
Max.175mA@5.0Vdc
Isolation
I/O to internal bus: opto-couple isolation (3KVrms)
Field Power
Nominal:24Vdc, Range:22-28Vdc
Wiring
34P male connector 2.54mm Pin header
Mounting Type
35mm DIN-Rail
Size
115*14*75mm
Weight
65 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% (No Condensation)
Protection Class
IP20
Output parameters
Channel Number
32 channels source type output
LED indicator
32 channels output LED indicator
Rated current
Typical value: 300mA
Leakage current
Max: 10uA
On Resistance
<200mΩ
Output delay Off to On
Max. 100us
Output delay On to Off
Max. 150us
Protection
Overtemperature shutdown: typical value is 135℃
Overcurrent protection
typical value 1.1A
Short circuit protection support
supported
