CT-4234: 4-CHANNEL ANALOG OUTPUT

Product Feature:

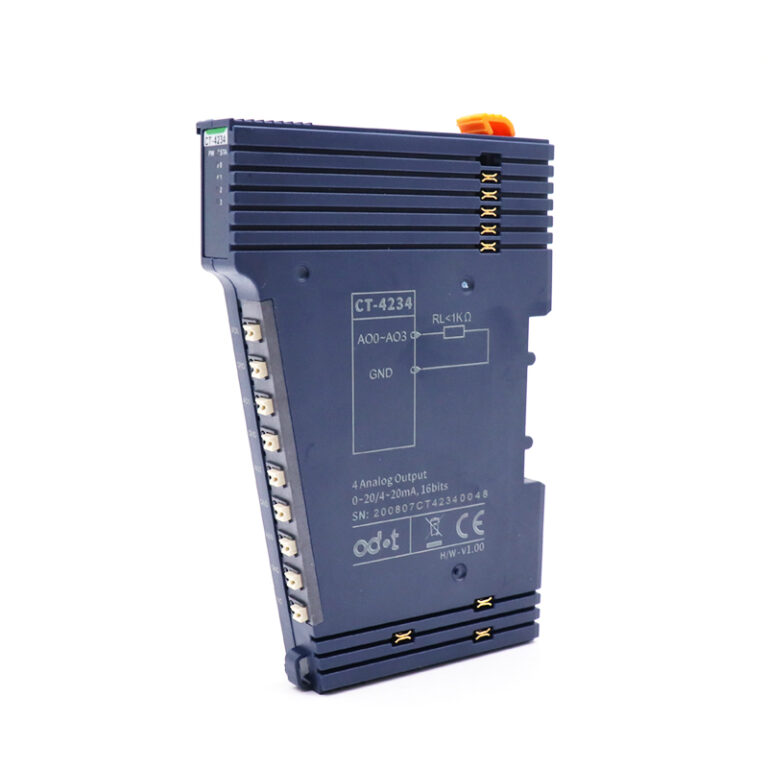

Product Model：CT-4234: 4-channel analog output /0&4-20mA/16-bit single-terminal Module features

IO Config V1.0.0.6(Fully with .NET4.0.rar|CT-3804.pdf

  • 2 output ranges can be set(0-20mA、4-20mA)
  • The module internal bus and field output adopts magnetic insulation
  • Single-terminal grounded together output mode

Product Details

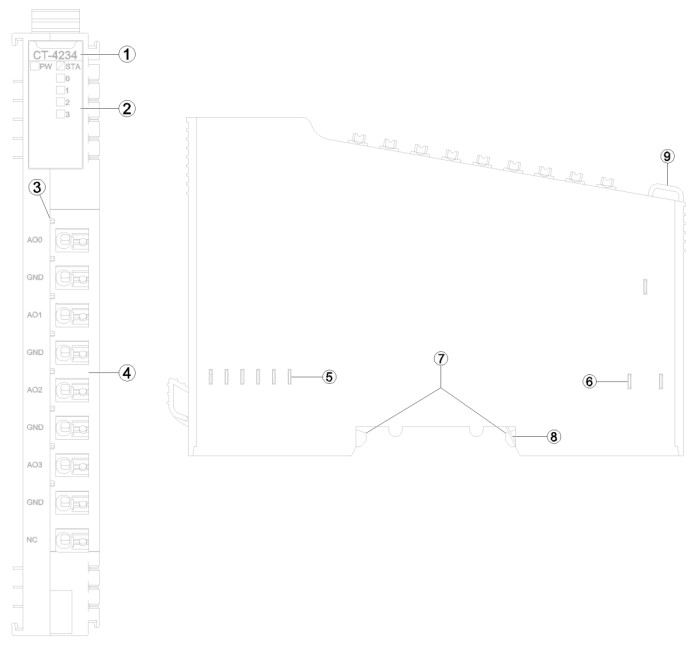

  1. Module Type
  2. State Indicator
  3. (non field channel indicator)
  4. Wiring Terminal and Marking
  5. Internal Bus
  6. Field Power
  7. Buckle
  8. Grounding Sheet
  9. Fixed Wiring Harness

Technical Parameters

GEneral parameters
Power
Max.25mA@5.0Vdc
Isolation
I/O to internal bus: magnetic isolation (3KVrms)
Wiring
I/O wiring: Max.1.5mm2(AWG 16)
Mounting Type
35mmDIN-Rail
Size
115*14*75mm
Weight
65 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% RH(No Condensation)
Protection Class
IP20
Output parameter
Channel Number
4 Channels
Resolution ratio
16Bit
Output range
0-20mA/4-20mA
The output precision
>0.3%
Diagnostic function
Disconnection or overload, field power supply error
The common terminal
0V grounded together, channels are not isolated
Conversion time
2ms/ all channels
Load
Max.1KΩ
