Analog Input Module

CT-3168: 8 Channel Voltage Input

CT-3168 8 channel Voltage Input 0~5/0~10/±5/±10VDC, 15Bit/16 Bit

Module features

  • the module supports 8 channels of voltage signal input
  • the module could collect 0~5VDC, 0~10VDC, ±5VDC, ±10VDC, with a 15-bit or 16-bit resolution

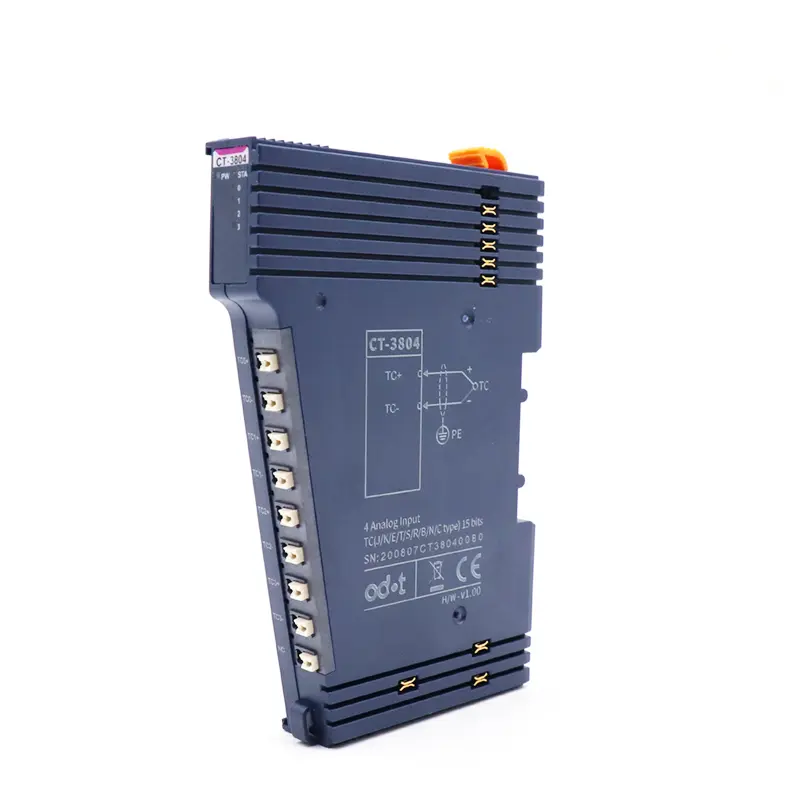

CT-3804: 4 Channels Analog Input

IO Config V1.0.0.6(Fully with .NET4.0.rar|CT-3804.pdf

CT-3804: 4 channels Analog Input, Thermocouple(J type, K type, E type, T type, Stype, R type, B type, N type, C type)

Module features

  • The module supports 4-channel thermocouple signal acquisition

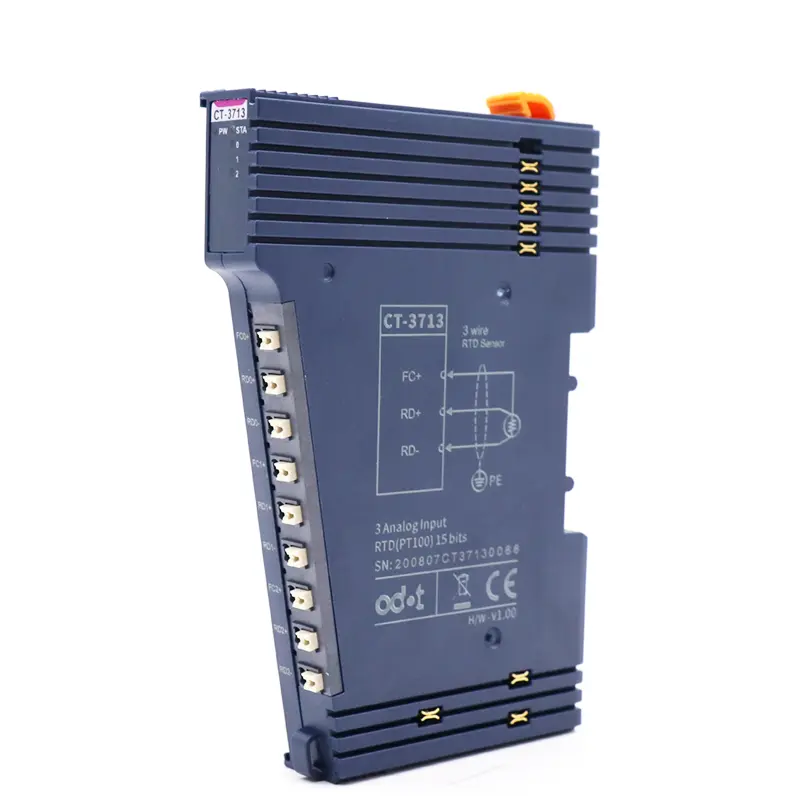

CT-3713: 3-Channel RTD-PT100 Temperature Acquisition Module

CT-3713: 3-channel RTD-PT100 temperature acquisition module

Module features

  • The module supports 3-channel RTD thermal resistance (PT100) temperature acquisition
  • The module could be connected to a 2-wire or 3-wire PT100 temperature sensor
  • The internal bus of the module and field input adopts magnetic isolation

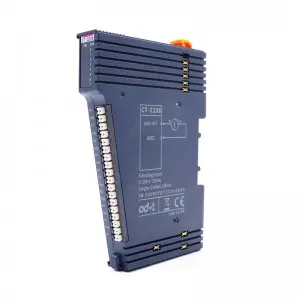

CT-3238: 8-Channel Analog Input

CT-3238: 8-channel analog input /0&4-20mA/15-bit single-terminal

  • The module supports 8-channel current signal acquisition.
  • The module can be configured for 0-20mA or 4-20mA current signal acquisition.
  • The module supports 2-wire (non-loop output, external power supply required) or 4-wire current sensor input.

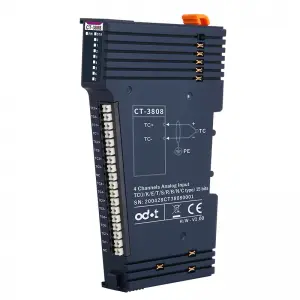

CT-3808: 8 Channels Analog Input,Thermocouple

  • The module supports 8-channel thermocouple signal acquisition
  • The module carries 8 analog LED indicators
  • The module supports 9 kinds of conventional thermocouple temperature measurement type
  • The internal bus of the module and field input adopts magnetic isolation
  • The module input channel supports TVS overvoltage protection
