AIOBOX-16/32: MODBUS/PROFINET/PROFIBUSDP/ETHERCAT/CANOPEN
Product Feature:
- AI0B0X Series Integrated IO AIOBOX-16/32
- Al0BOX-16 supports single-deck mother board, 3 slots, slot 0 for communication adaptor, slot 1/2 for I/O module，
- Al0BOX-32 supports double-deck mother board, 5 slots, slot 0 for communication adaptor, slot 1/2/3/4 for I/O module
- Al0BOX-16 supports single-deck mother board, 3 slots, slot 0 for communication adaptor, slot 1/2 for I/O module;
- Al0BOX-32 supports double-deck mother board, 5 slots, slot 0 for communication adaptor, slot 1/2/3/4 for I/O module ;
- Slot 0 can be Modbus-TCP/Modbus RTU, PROFINET, EtherCAT, PROFIBUS-DP and CANopen;
- Slot 1/2/3/4 can be selected according to customer needs, Max. 32 channels;
- Working temperature: -40°C~85°C.
Product Details
AIOBOX-16/32 is a modularized integrated IO module. The product can collect the I/O signal (Digital, Analog signal) of the field device to the PLC or host computer with Modbus TCP/ Modbus RTU, PROFINET, PROFIBUS-DP, EtherCAT communication interface. The construction is firm, firm design. It supports DIN-rail installation.
Technical Parameters
AI0B0X-16
Standard voltage: 24VDC
Voltage Range: 9-36VDC
Power: Max.250mA@24Vdc
10 wiring: Max.l.5mm2(AWG16)
System wiring: 3.81mm plug screw terminal
Field wiring: 3.5mm plug screw terminal
Slots: 3

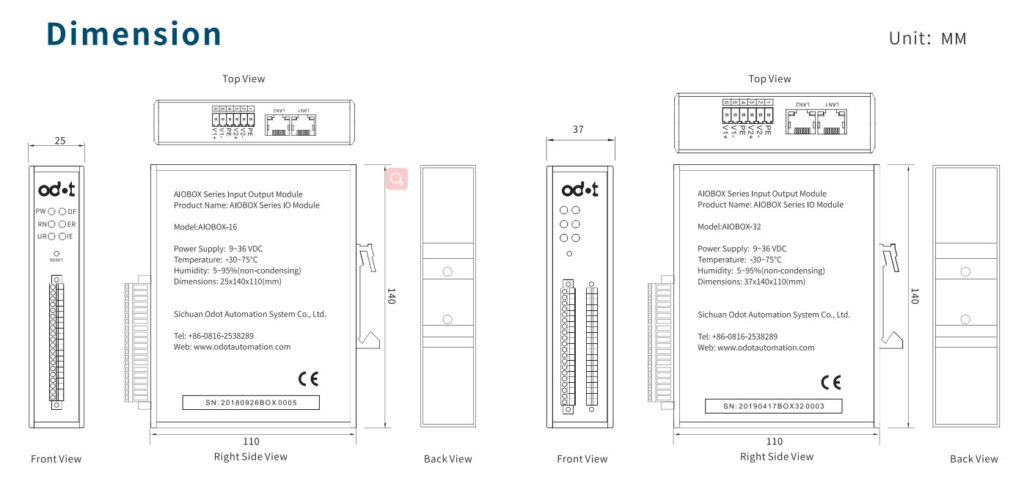

Dimension: 25*140*110mm
AIOBOX-32
Standard voltage: 24VDC
Voltage Range: 9-36VDC
Power: Max.400mA@24VDC
10 wiring: Max. 1.5mm2 (AWG 16)
System wiring: 3.81mm plugscrewterminal
Field wiring: 3.5mm plugscrewterminal
Slots: 5
Dimension: 37 *140* 110mm
AIO-X8033(EtherCAT)
AdapterType: EtherCAT slave
Ethernet Port: 2
Speed: 10/100MbpsadaptiveMDI/MDIX
Transmission Distance: Max, 100m
Data Length:
Max.256 Byte input
Max. 256 Byte output
AIO-X8012(ProfibusDP)
AdapterType: PROFIBUS-DPslave
Protocol: PROFIBUS-DP/V0
Ports: DB9*1
Speed: 9.6K-12Mbps adaptive
Data Length:
Max. 244 Byte input
Max. 244 Byte output
Address Config: 8-bit dial code switch
AIO-X8031(MODBUS)
Ethernet Ports: 2 ports with switch function
AdapterType 1: Modbus-TCP Server
Speed: 10/100Mbps adaptive, Auto-MDI/MDIX
Transmission Distance: Max.l00m
Clients: Max. 2 clients simultaneously
Function Code: 01/02/03/04/05/06/15/16
Isolation: Electromagnetic isolation
Serial Port: 1 RS485
Adapter Type 2: Modbus-RTU Slave
Wiring: 3.81mm plug screw terminal
ESD Protection: ±16KV
Data Bits: 7, 8
Stop Bits: 1, 2
Check digit: None, even, odd
Baud Rate: 2400~115200bps
Function Code: 01/02/03/04/05/06/15/16
Serial Mode: Supports RTU and ASCII
IO Modules
IO Modules (Max.2 for AIOBOX-16 and Max.4 for AIOBOX-32)
AIO-X1248: 8 channel/digital input/24VDC/ source or sink type
AIO-X2228: 8-channel / digital output / 24VDC / source type
AIO-X3318: 8-channel / single-ended / 0&4-20mA input, 16-bit
AIO-X3424: 4-channel/differential/0&4-20mA, ±20mA input, 16-bit
AIO-X3713: 3-channel / RTD-PT100 / input
AIO-X3804: 4-channel / TC thermocouple / input
AIO-X6227: 7 channel / 24VDC / digital composite module 4DI + 3DO
AIO-X4324: 4 channel 0-20/4-20/ 0-24mA current output 16 bytes
AIO-X5102: 2 channel/ Incremental encoder input/ 5V TTL input
AIO-X5112: 2 channel/ Incremental encoder input/ lVpp Sinusoidal input
Mechanical
Shell: Aluminum alloy
Weight: AIOBOX-16: 416g/AIOBOX-32: 548g
Working Environment
Working Temperature: -40〜85°C
Storage Temperature: -55〜125°C
Relative Humidity: 5 〜95% (no condensation)
Power: InputVoltage 9~36VDC
Others
Certificate: EMS, CE
Warranty: 3 years
Software: AIO-Box Config
Operating: Supports Win XP, Win7, WinlO based on
Platform: NET framework4.0
AIO-X8032(ProfiNet)
AdapterType: PROFINET10 device
Ethernet Port: 2 ports with switch function
Speed: 10/100Mbps adaptive, Auto-MDI/MDIX
Transmission Distance: Max, 100m
Data Length:
Max.512 Byte input
Max. 512 Byte output
Isolation: Electromagnetic isolation

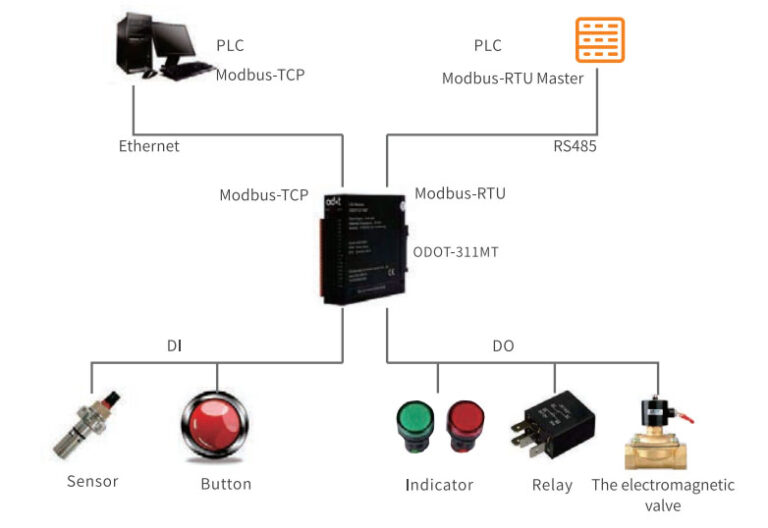

Application
