Analog Output

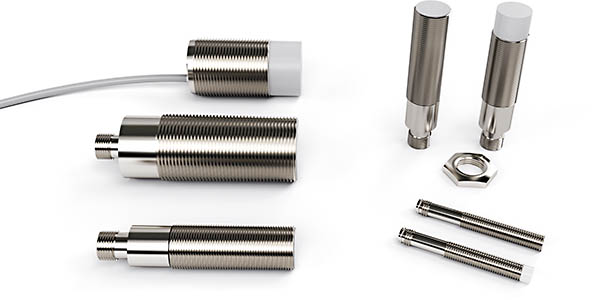

XECRO sensors with analog output are able to measure precisely distances to metal objects. They are ideal for positioning, distance measurement and metal classification, or comparable applications. Analog current or voltage outputs are available with extended sensing distances in sizes ranging from M8 to M30.
All inductive sensors with analog output from XECRO are perfectly linearized between zero distance and the maximum Sn. Due to the precise digital calibration of every single sensor during the production, there is almost no device-to-device variation — even between sensors of different production lots.
| Sensor diameter | Measuring distance | Mounting |
|---|---|---|
| M8 | 4 mm | semi-flush |
| M8 | 6 mm | non-flush |
| M12 | 8 mm | semi-flush |
| M12 | 10 mm | non-flush |
| M18 | 12 mm | semi-flush |
| M18 | 20 mm | non-flush |
| M30 | 20 mm | semi-flush |
| M30 | 40 mm | non-flush |
Benefits
Factory calibrated sensors with digital signal processing
Absolutely linear output function—error <1‰
Features
Starts at diameter M8×1
High sensing distances
Polarity reversal and short-circuit protected
LED supply indicator
Common Specifications
| Operating Voltage | 10 … 35 VDC |
| Reverse Polarity Protection | Built-in |
| Output Configurations | 0… 10 V |
| 0… 20 mA | |
| 4… 20 mA | |
| Short Circuit Protection | Built-in, self-resetting |
| Thermal Overload Protection | Built-in, self-resetting |
| Operating Temperature | –20 … 70°C | -4 … 158 °F |
| Protection Class | IP 67 |
| Supply Indicator | Integrated, green |
| Sensing Face Material | PBT |
